Lumina Thorpe Park Leeds

“BREEAM excellent rated four-storey office, benefiting from energy-efficient Mitsubishi Electric heat recovery VRF systems”

Project Overview

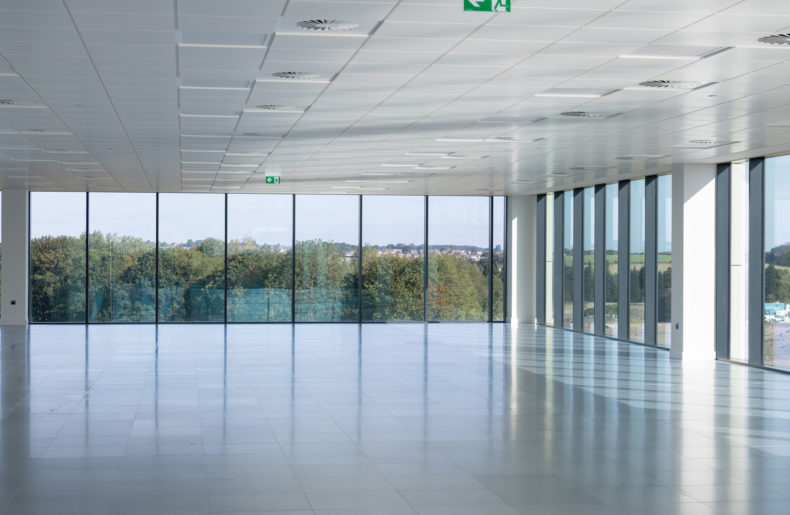

Lumina, Thorpe Park, is a brand new, four-story, office building on the outskirts of Leeds, installed with Mitsubishi heat recovery air conditioning systems throughout, and complete with energy-efficient LED lighting, the building also includes a large external terrace at third-floor level, fully flexible floor plate division, is DDA compliant and rated BREEAM excellent.

Project Duration -5 months

Project Value – Circa £300,000

Project Description

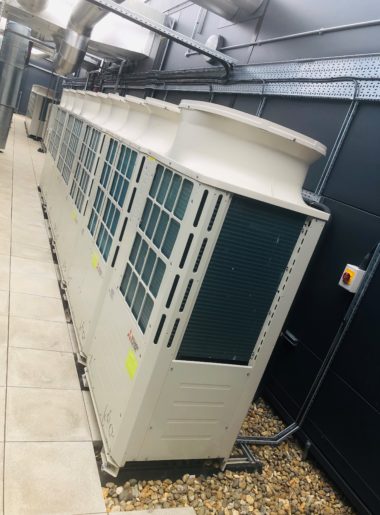

Temperature Control Ltd carried out the supply and installation of 8 No Mitsubishi R2 Series, heat recovery VRF condensing units, within the roof level plant deck, connected to 84 No ducted type indoor fan coil units across four floors. Mitsubishi split systems to serve the lift lobby areas, with Mitsubishi AHU DX condensing units, including AHU interface at roof level to serve the ventilation system. All equipment is operated by touch screen centralised controllers, with localised hard-wired remote controllers for each floor, complete with BACnet BMS interface.

Project Outcome

Using BCO guidelines, the client benefited from an energy-efficient application that can simultaneously heat and cool at the same time, suitable for a cellular arrangement should this be amended to a Cat B design at a later date.
